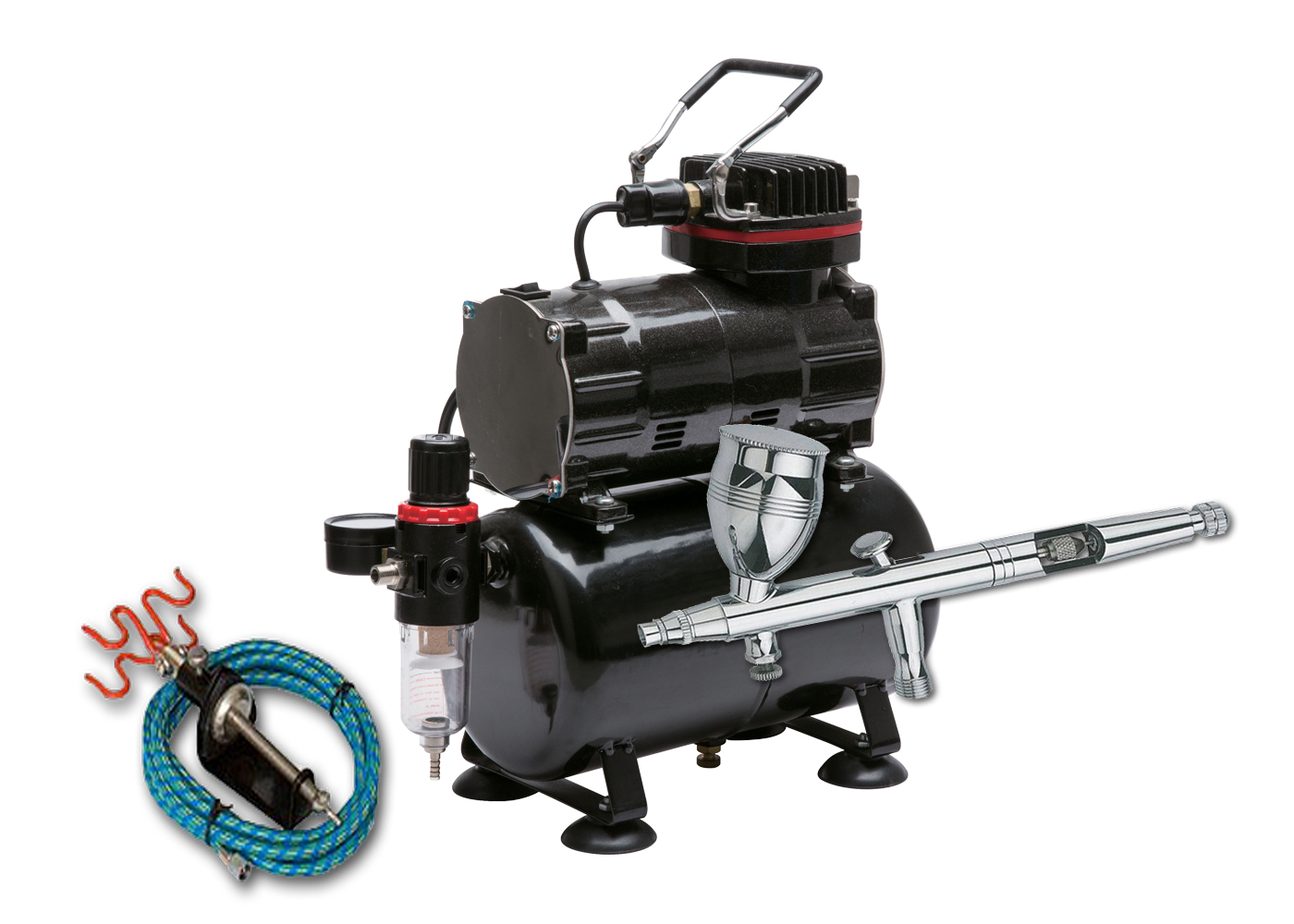

TC-80T Compressor and AB-186 Airbrush Starter Kit

Description

This completed kit comes with an on-demand mini piston compressor with 3 litre air receiver, 1.8 metre braided air hose and a gravity feed AB-186 airbrush and table clamping airbrush stand

An excellent starter kit for modelling or any of the following applications: cake decorating, make up, t-shirt’s, nail art or general artwork.

Royal Max TC-80T Mini Piston Compressor with 3 Litre Air Receiver

The TC-80T oil-less compressor has a 3.0 litre receiver tank that has its pressure maintained automatically by the compressor. Once it has reached the maximum output pressure of 57 PSI it shuts off automatically. Only when the airbrush is triggered and the tank pressure falls below 40 PSI does it restart.

Features

• Ultra quiet (47db) – can be used unobtrusively in the home
• Maintenance free oil-less piston design with lightweight aluminium construction
• Built in carry handle – light and easy to transport
• 3.0 litre Receiver tank – ensures pulse free output, and use of up to two airbrushes simultaneously (adaptor required)
• Industrial type push lock pressure regulator with gauge, water trap and air filter
• Pressure relief safety valve
• Rubber feet
• Supplied with a three pin UK plug



Specifications

• Motor – 240V 50Hz 1Ph
• Power rating – 150W
• Rotational speed – 1450 rpm
• Maximum pressure – 57 psi
• 1/8 BSP male outlet
• Air displacement – 23 litres/min
• Weight – 5.2kg

AB-186 Gravity Feed Airbrush (0.3mm)

With a double-action trigger to precisely control the air /paint mix, this airbrush is particularly suitable for detail design to medium coverage work. It is of all metal construction.

This is a double action type of airbrush, where pressing the trigger turns on the air and pulling the trigger operates the needle/tip valve, which controls how much paint is released. These can work down to very fine lines (1mm or less) when you have reached the required skill level. The largest spray pattern is approx 40mm dependant on distance from the surface to be sprayed.

Specifications

• Dual-action
• Fluid nozzle – 0.3 mm
• Working pressure – 15-30 psi
• Capacity of cups – 2cc, 5cc and 13cc

Table Clamping Airbrush Stand

This airbrush stand clamps on the edge of a table and has the capacity to hold two airbrushes.

Kit Includes

• TC-80T – Compressor with 3 litre air receiver
• AB-24 – 1.8m braided air hose
• AB-186 – Gravity feed airbrush (0.3mm)
• AB-17 – Table clamping airbrush stand (holds two airbrushes)

European customers can connect to EU mains by purchasing the following UK to EURO plug adaptorUK to European Plug Adaptor
